Vibration

*The above graph is representative and should only be used as a guide for estimation purposes. If there are any questions, or your application is near the “consult factory” region, please contact Hose Master Customer Service.

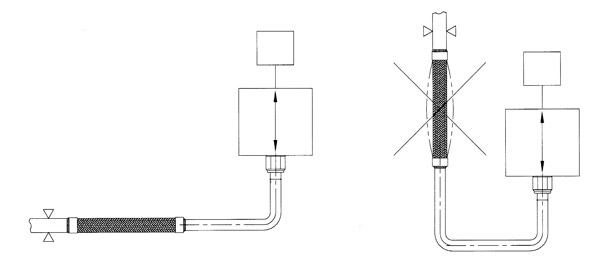

When installing a hose assembly in a vibration application, make sure to install it so that the axis of the hose is perpendicular to the direction of the vibration.

If there is vibration in more than one direction, either install a longer hose bent at 90° or install a “Dog Leg” assembly.
