Selecting
the
proper
fittings
for
an
application
is
largely
determined
by
the
mating
fittings
to
which
the
hose
assembly
will
be
attached.
Once
the
mating
fittings
have
been
identified,
the
hose
fittings
should
complement
the
mating
fittings
in
type,
size
and
alloy.
Even
though
the
selection
of
hose
fittings
is
determined
by
the
mating
fittings,
it
is
a
good
idea
to
confirm
that
the
fittings
used
in
the
application
are
appropriate
for
the
application
and
any
necessary
changes
made.
Ensure
that
the
fittings
are
chemically
compatible
with
and
are
able
to
withstand
the
conditions
in
which
the
hose
is
installed
and
in
which
it
will
be
used.
The
following
show
commonly
used
fittings
for

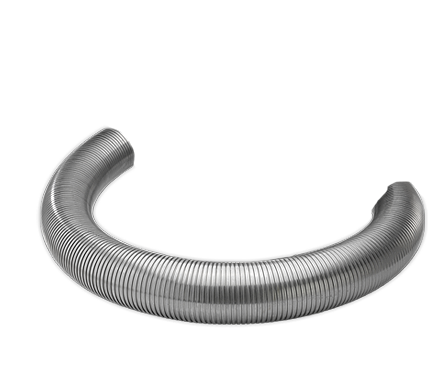

stripwound
metal
hose
assemblies.
Please contact Hose
Master’s
Customer
Service
Department
for
end
connections
that
are
not
listed.
-
Male Pipe Nipple
- Alloys – T304 and T316 Stainless Steel, Carbon Steel, Aluminum
- Sizes – 1 1/2″ thru 8″
- Schedules – 40, 80
-
Grooved-End Fitting
- Alloys – T304 and T316 Stainless Steel, Carbon Steel
- Sizes – 1 1/2″ thru 8″
-
Slip-on Flange
- Alloys – T304 and T316 Stainless Steel, Carbon Steel
- Sizes – 1 1/2″ thru 12″
- Class – 150#, 300#
-
Plate Flange
- Alloys – T304 and T316 Stainless Steel, Carbon Steel
- Sizes – 1 1/2″ thru 14″
- Class – 150#
-
C Stub with Floating Flange
- Alloys – T304 and T316 Stainless Steel
- Sizes – 1 1/2″ thru 10″
- Schedule – 10
-
Part A and Part D (Cam-Lock)
- Alloys – T316 Stainless Steel, Carbon Steel, Aluminum
- Sizes – 1 1/2″ thru 8″
-
Tube End
- Alloys – T304 and T316 Stainless Steel, Carbon Steel
- Sizes – 1 1/2″ thru 8″
- Wall Thickness – Various
-
Reducer
- Alloys – T304 and T316 Stainless Steel, Carbon Steel
- Sizes – 1 1/2″ thru 6″
- Schedule – 10, 40 (Carbon Steel)
-
Beveled Pipe End
- Alloys – T304 and T316 Stainless Steel, Carbon Steel, Aluminum
- Sizes – 1 1/2″ thru 8″
- Schedules – Various
-
NPSM Female or Male
- Alloy – T304 Stainless Steel
- Sizes – 4″ thru 6″
-
Tar and Asphalt Male and Female
- Alloys – Malleable Iron
- Sizes – 1 1/2″ thru 4″
-
Compensator
- Alloys – Urethane
- Sizes – 3″ thru 6″
Hose Master places emphasis on continual improvements within our manufacturing processes, product offering and services. Hose Master reserves the right to make changes without further notice to any products contained herein.
