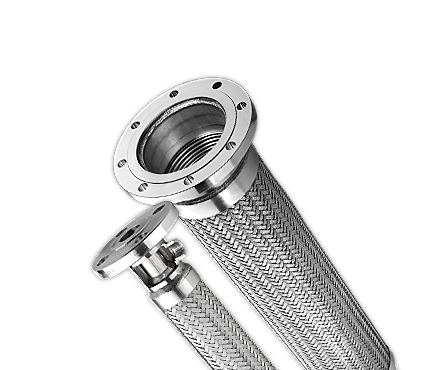

Fittings
Metal
hose
is
more
versatile
than
other
hose
in
that
virtually
any
fitting
can
be
attached
to
metal
hose.
Other
types
of
hose
require
special
shanks
and
collars
in
order
to
attach
fittings.
For
metal
hose,
any
fitting
made
from
a
weldable
material
can
be
attached
without
the
need
for
special
features.
This
versatility
also
means
that
multiple
fittings
can
be
welded
together
to
make
custom
solutions
for
difficult
applications.
Selecting
the
proper
fittings
for
an
application
is
largely
determined
by
the
mating
fittings
to
which
the
hose
assembly
will
be
attached.
Once
the
mating
fittings
have
been
identified,
the
hose
fittings
should
complement
the
mating
fittings
in
type,
size,
and
alloy.
Even
though
the
selection
of
hose
fittings
is
determined
by
the
mating
fittings,
it
is
a
good
idea
to
confirm
that
the
fittings
used
in
the
application
are
appropriate
for
the
application
and
any
necessary
changes
made.
Ensure
that
the
fittings
are
chemically
compatible
with
and
are
able
to
withstand
the
pressure
and
temperatures
of
both
the
media
and
the
surrounding
environment.
The
following
show
commonly
used
fittings
for
corrugated
metal
hose
assemblies.
Please contact Hose
Master’s
Customer
Service
Department
for
end
connections
that
are
not
listed.
-
Male Pipe Nipple
- Alloys – T304 and T316 Stainless Steel, Carbon Steel, 276
- Sizes – 1/8″ thru 8″
- Schedules – 40 and 80
-
Hex Male
- Alloys – T304 and T316 Stainless Steel, Carbon Steel, Brass
- Sizes – 1/4″ thru 4″
-
Grooved-End Fitting
- Alloys – T304 and T316 Stainless Steel, Carbon Steel
- Sizes – 1″ thru 8″
- Schedule – 40
-
LiveLink® Swivel Fitting
- Alloys – T304 Stainless Steel
- Sizes – 1/4″ thru 2″
-
Female Union (Threaded/Socket Weld)
- Alloys – T304 & T316 Stainless Steel, Carbon Steel, Malleable Iron, Brass
- Sizes – 1/4″ thru 4″
- Class – 125#, 150# (3000# Carbon Steel Only)
-
Female Half Coupling (Threaded/Socket Weld)
- Alloys – T304 and T316 Stainless Steel, Carbon Steel
- Sizes – 1/4″ thru 4″
- Class – 150# (3000#)
-
1, 2, or 3 Piece SAE (JIC)
- Alloys – T316 Stainless Steel, Carbon Steel, Brass (nut only)
- Sizes – 1/4″ thru 2″
-
45° and 90° SAE (JIC)
- Alloys – Stainless Steel, Carbon Steel
- Sizes – 1/2″ thru 2″
-
Sanitary Flange
- Alloys – T304 and T316 Stainless Steel
- Sizes – 1″ thru 3″
-
Slip-on Flange
- Alloys – T304 and T316 Stainless Steel, Carbon Steel
- Sizes – 1/2″ thru 12″
- Class – 150#, 300#
-
Plate Flange
- Alloys – T304 and T316 Stainless Steel, Carbon Steel
- Sizes – 1/2″ thru 12″
- Class – 150#
-
Weld Neck Flange
- Alloys – T304 and T316 Stainless Steel, Carbon Steel
- Sizes – 1/2″ thru 6″
- Class – 150#, 300#
-
TTMA Flange
- Alloys – T316 Stainless Steel, Carbon Steel
- Sizes – 2″ thru 6″
-
C Stub with Floating Flange
- Alloys – T304 and T316 Stainless Steel
- Sizes – 1/2″ thru 10″
- Schedule – 10
-
A Stub with Lap Joint Flange
- Alloys – T304 and T316 Stainless Steel, Carbon Steel, 276
- Sizes – 1/2″ thru 8″
- Schedules – 10, 40
-
TTMC C Stub Swivel
- Alloys – T304 and T316 Stainless Steel
- Sizes – 4″ thru 6″
- Schedule – 10
-
Part A and Part D (Cam-Lock)
- Alloys – T316 Stainless Steel, Brass, Aluminum
- Sizes – 1/2″ thru 8″
-
Tube End
- Alloys – T304, T316, and T321 Stainless Steel, Carbon Steel
- Sizes – 1/8″ thru 8″ (seamless and welded)
- Wall Thickness – various
-
Short and Long Radius Elbows (45° and 90°)
- Alloys – T304 and T316 Stainless Steel, Carbon Steel, 276
- Sizes – 1/4″ thru 6″
-
Reducer
- Alloys – T304 and T316 Stainless Steel, Carbon Steel
- Sizes – 3/4″ thru 6″
- Schedule – 10 (40 Carbon Steel)
-
Beveled Pipe End
- Alloys – T304 and T316 Stainless Steel, Carbon Steel, 276
- Sizes – 1/8″ thru 8″
- Schedules – Various
-
Ground Joint Female
- Alloys – Carbon Steel
- Sizes – 1/2″ thru 4″
-
Specialty Gas Nuts
- Alloys – Brass
- Sizes – A, B, C, D
- Thread Type – SAE and BSP
