DEF Flex Connectors are designed and manufactured to meet the specific corrosive environments encountered when transferring Diesel Exhaust Fluid (DEF).
-

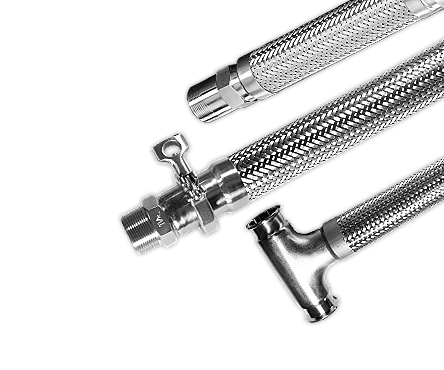

Stainless Steel Hex Males Each End
-
Stainless Steel Hex Male x Stainless Steel Female Union
-
Stainless Steel Hex Male x Stainless Steel Hex Male QuickClamp
Hose Master DEF Flex Connectors Feature
- 100% stainless steel construction for optimal corrosion resistance
- Proprietary tube seam weld technology resists oxidation
- Strongest fitting attachments ensured by ASME IX certified welders
- Increased flexibility and service life from Hose Master’s proprietary hydroforming process
- Available in styles as shown left, or with a variety of industrial stainless steel fitting options. Please consult Hose Master inside sales for details
- Connectors are also available in QuickClamp designs (shown left) and include stainless clamp with special peroxide-cured EPDM gasket*
DEF Flex Connector Applications
- Mobile skids
- Above ground totes and storage tanks
- Underground storage tanks
- DEF concentrations recognized by ISO 22241-1 and API DEF Certification standards
* Peroxide-cured EPDM gaskets are NOT interchangeable with standard QuickClamp gaskets
DEF Flex Connector Specifications
| Hose Diameter (in.) |
Maximum Working Pressure Hex Males e/e (p.s.i.) |
Maximum Working Pressure Hex Male x 150# Hex Female Union (p.s.i.) |
Maximum Working Pressure Hex Male x 150# Hex Female Union (p.s.i.) |
Minimum Connector Bend Radius (in.) |
Standard Connector Lengths (in.) |
| 3/4 | 898 | 300 | 50 | 2.1 | 12, 18, 24 |
| 1 | 718 | 300 | 50 | 2.7 | 12, 18, 24 |
| 1 1/2 | 531 | 300 | 50 | 3.9 | 12, 18, 24 |
| 2 | 449 | 300 | 50 | 5.1 | 12, 18, 24 |
Notes:
- Other sizes, lengths and stainless end connections are available upon request.
- FireShield connectors are not recommended for DEF service and do not carry UL-approval for that application
Hose Master places emphasis on continual improvements within our manufacturing processes, product offering and services. Hose Master reserves the right to make changes without further notice to any products contained herein.
-
